Punching and blanking as a main metal forming method, sipxmach is professional

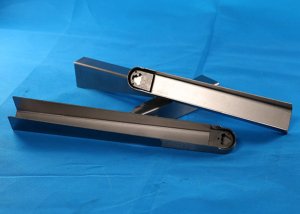

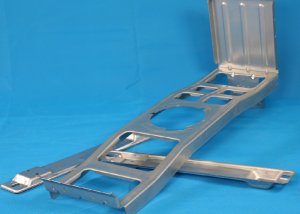

China Sipxmach punching and blanking manufacturing for sheet metal parts, many used for furniture, automobile, motorcycle, lighting, electrical industries. Following is a partial presentation of sheet metal parts using blanking and punching by SipxMach:

Piercing, punching and blanking are three popular procedures of machining used to manipulate raw metal, for example sheet metal. All three processes require a machine to be used that in some way deforms or alters the raw metal’s physical properties. Piercing, punching, and blanking, though similar, have distinct tasks. Below is an overview of each method of machining and how it operates.

Piercing Definition or what is piercing?

Piercing is a shearing method in which raw metal with a machining instrument is penetrated, leading in a circular or other shaped hole being created. The metal from the freshly formed hole is regarded scrap as the raw metal is penetrated. The piercing machine pushes through the sheet metal a device, known as a blanking punch.

There are several distinct methods of piercing, some of which include:

  • Lancing                              • Trimming
  • Notching                            • Perforating

Punching Definiton or What Is Punching?

Punching is a method of machining that includes removing scrap metal from a raw metal sheet. A punch press must be used to compress a tool through a sheet of raw metal. While punching is typically done using sheet metal, other materials such as paper, plastic and different fibers are supported. When put against a die, the button pressed through the sheet metal. Punched sheet metal therefore requires the same form as the die used.

In one word: Punching Cut a shape scrap from the final product, left on the machine is the outside part (Final part).

Blanking Definition or What Is Blanking?

Blanking is often mistaken with piercing as both procedures involve cutting raw metal holes. They’re not necessarily the same, though. The metal from the hole is saved and used instead of discarded with blanking. In other words, production firms blanking to produce tiny metal parts, while manufacturing firms conduct piercing to produce metal items with a single hole.

The main thing to remember is that blanking outcomes in a single piece of sheet metal creating various metal components. In contrast, piercing and punching in sheet metal typically produce a single hole.

As you can see, three distinctive machining activities are piercing, punching and blanking. All of them are used for sheet metal manipulation, but each procedure operates differently. Piercing is used by piercing it with a instrument to make holes in raw metal. Punching utilizes a machine to use a die to produce metal items in particular forms. Lastly, blanking is the method of machining used to produce tiny metal parts. There are no tags for this article.

In one word: Blanking Cut down the final product from the sheet material, left on the machine is the useless part (scrap part)

Detailed process introduction of Punching and blanking

  1. Place the metal sheet to be punched between the punching machine and the die,
  2. Under the action of the press, the punch moves downward and enters the mold,
  3. The metal sheet in the projection range directly below the punch is separated from the surrounding material,
  4. The cut metal is removed from the hole of the die and collected into the same container for recycling,
  5. Get the parts you want to shape.

Summary above: Punching and blanking are two main methods of metal stamping and fabrication ways, exactly is way of cutting sheet matel to get custom shapes’ metal parts. Sipx provide sheet metal punching and blanking in material of aluminum, brass, bronze, mild steel, stainless steel, alloy and so on.SipxMach devoted to save you cost The waste can be minimized, if designed the tools to nest parts as closely together as possible.

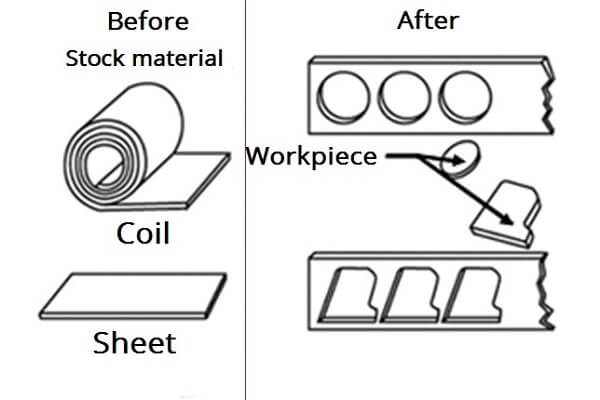

Follows shows the workpieces blanking process using either sheet or roll as the parent material.

Blanking with coil or sheet in SipxMach.com

Punching and blanking is kind of Forming of sheets:

Forming of sheets of metal includes forming and cutting activities on sheets, strips and coils of metal. The starting metal’s surface-to-volume ratio is comparatively high.

Tools include the use of punch, die to deform the sheets.

Bending: Usually in a straight axis, the sheet material is punched to give a bend shape (angle shape).

Deep drawing also transform from punching : In this procedure, the formation of a flat sheet of metal into a hollow or concave form like a cup is conducted by stretching the metal in some areas. To clamp the blank on the die, a blank-holder is used, while the punch pushes into the sheet metal. The sheet is taken into the cavity form of the die hole.

Shearing: This is nothing more than sheet cutting by shearing action.

Almost all “punching and blanking” are cold working

Cold operation: generally performed at room temperature or slightly above RT.

Advantages compared to warm forming:

  1. closer tolerances can be accomplished;
  2. excellent surface finish;
  3. partially observed due to strain hardening, greater strength and hardness;
  4. grain flow during deformation offers the chance for desirable directional characteristics;
  5. since no job heating is involved, fuel flows are available.

Disadvantages:

  1. greater strengths and energy are needed;
  2. job metal strain hardening limits the quantity of forming that can be performed;
  3. sometimes the cold forming-annealing-cold forming cycle should be followed;
  4. the job piece is not ductile enough to operate cold.

Warm operation: forming at temperatures just above room temperature but below recrystallization temperature is conducted in this situation. Working temperature is 0.3 Tm where Tm is the workpiece’s melting point.

Advantages:

  1. Improved plastic deformation characteristics,
  2. Reduced necessary strengths,
  3. Possible intricate geometries of job,
  4. Decreased annealing phases.

Hot operation: involves deformation from 0.5Tm to 0.75Tm above recrystallization temperature.

Advantages:

  1. Important plastic deformation can be provided to the sample,
  2. Important shift in the form of the workpiece,
  3. Reduced forces are needed,
  4. Warm forming of metals with premature failure,
  5. Lack of reinforcement owing to hardening of the workpiece.

Disadvantages:

  • Shorter tool life,
  • Bad surface finish,
  • Reduced dimensional precision,
  • Oxidation of the sample surface
Punching and blanking in SipxMach.com

As the left picture shows:
Punching and blanking are basic process of stamping method, one can not do without other

Metal forming: Large range of procedures in which the material is plastically deformed to take the geometry shape of the die. Depending on the sort of method, the instruments used for such deformation are called die, punch, etc.

Plastic deformation: stress is needed beyond the yield strength of the fabric of the workpiece.

Bulk formation: a serious process of deformation that results in massive change of form. The work’s surface-to-volume is comparatively low. Mostly performed in circumstances of hot work..

Rolling: The workpiece in the form of a slab or plate is compressed in the thickness direction between two rotating rolls to reduce the thickness. The rotating rolls pull and compress the slab into the gap. The final product is sheet-shaped

Forging: between two dies comprising formed contours, the workpiece is compressed. In the final portion, the die shapes are imparted.

Extrusion: The workpiece is compressed or driven into the die opening to take as its cross section the shape of the die hole.

Wire or rod drawing: similar to extrusion, except the workpiece is drawn to bring the cross-section through the die opening

Forming of sheets: forming of sheets metal components includes forming and cutting activities on sheets, strips and coils of metal. The starting metal’s surface-to-volume ratio is comparatively high.

Tools include the use of punch, die to deform the sheets.

Bending: Usually in a straight axis, the sheet metal components material is punched to give a bend shape (angle shape).

Deep drawing (or cup): In this procedure, the formation of a flat sheet of metal into a hollow or concave form like a cup is conducted by stretching the metal in some areas. To clamp the blank on the die, a blank-holder is used, while the punch pushes into the sheet metal. The sheet is taken into the cavity form of the die hole.

Shearing: This is nothing more than sheet cutting by shearing action.

SipxMach provides custom metal fabricating services for all industries

We are capable of providing stamping parts, Deep drawing, punching and blanking, progressive stamping, rotary stamping, high speed stamping, Metal forming, fine blanking, Aluminum stamping, stainless steel stamping, and many other punching and blanking fabricating services with variety of materials.
